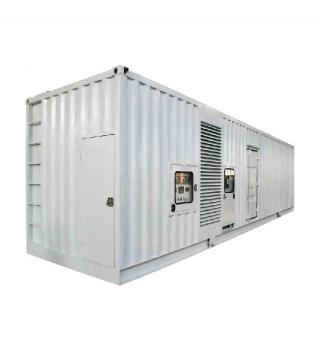

| Diesel Generator Set | ||
| Generator Set | Brand | Sealine |
| Prime Power(KVA) | 1000 | |
| Standby Power(KVA) | 1100 | |
| Rated Frequency(Hz) | 50/60 | |
| Rated AC Voltage(V) | 220/380, 240/400 | |
| Starting System | Electric Starter | |
| Noise Level(Dba/7m) | 70-72 | |
| Continuous Running Time(Hr) | 8-12 hours fuel tank | |
| Diesel Engine | Brand | Cummins |
| Model | KTA38-G5 | |
| Number of Cylinders | 12 | |
| Rotating Speed(rpm) | 1500 | |
| Cylinder Arrangement | V | |
| Cycle | Four stoke | |
| Aspiration | Turbocgarged air-air cooled | |
| Bore×Stroke(mm) | 159×159 | |
| Displacement(L) | 38 | |
| Compression Ratio | N/A | |
| Engine Oil Tank Capacity(L) | 100 | |
| Speed Governor | Electrical | |
| Cooling System | Water-cooled | |
| Speed Stability (%) | ≤5% | |
| Total Lubrication System Capacity (L) | 135 | |
| Coolant Capacity (Inc. Radiator) (L) | 306 | |
| Fuel Consumption at 100% Load | 209.0L/hr(at 1500RPM) | |
| Starting Method | DC24V Electrical starting | |
| Alternator | Brand | Stamford / Leroy Somer / other |
| Number of Phase | 3 | |
| Power Factor(cosθ) | 0.8(lagging) | |
| Connecting Type | Three Phase and Four Lines | |
| Number of Bearing | 1 | |
| Grading Protection | IP23 | |
| Altitude | ≤1000m | |
| Exciter Type | Brushless, self-exciting | |
| Insulation Class | H degree | |
| Dimension & Packing | Dimension(L*W*H)(mm) | 4500*1750*2350 |
| Net Weight(kg) | 8200 | |
| Packing | 40HQ Container | |
| 40HQ Loading Quantity | 1 | |
| Payment | Payment Terms | T/T or L/C |
| Minimum Order Quantity | 1 unit | |
| Delivery Lead Time | Within 15days after received the depsoite | |
| Warranty | One Year or 1000 Working Hours | |
